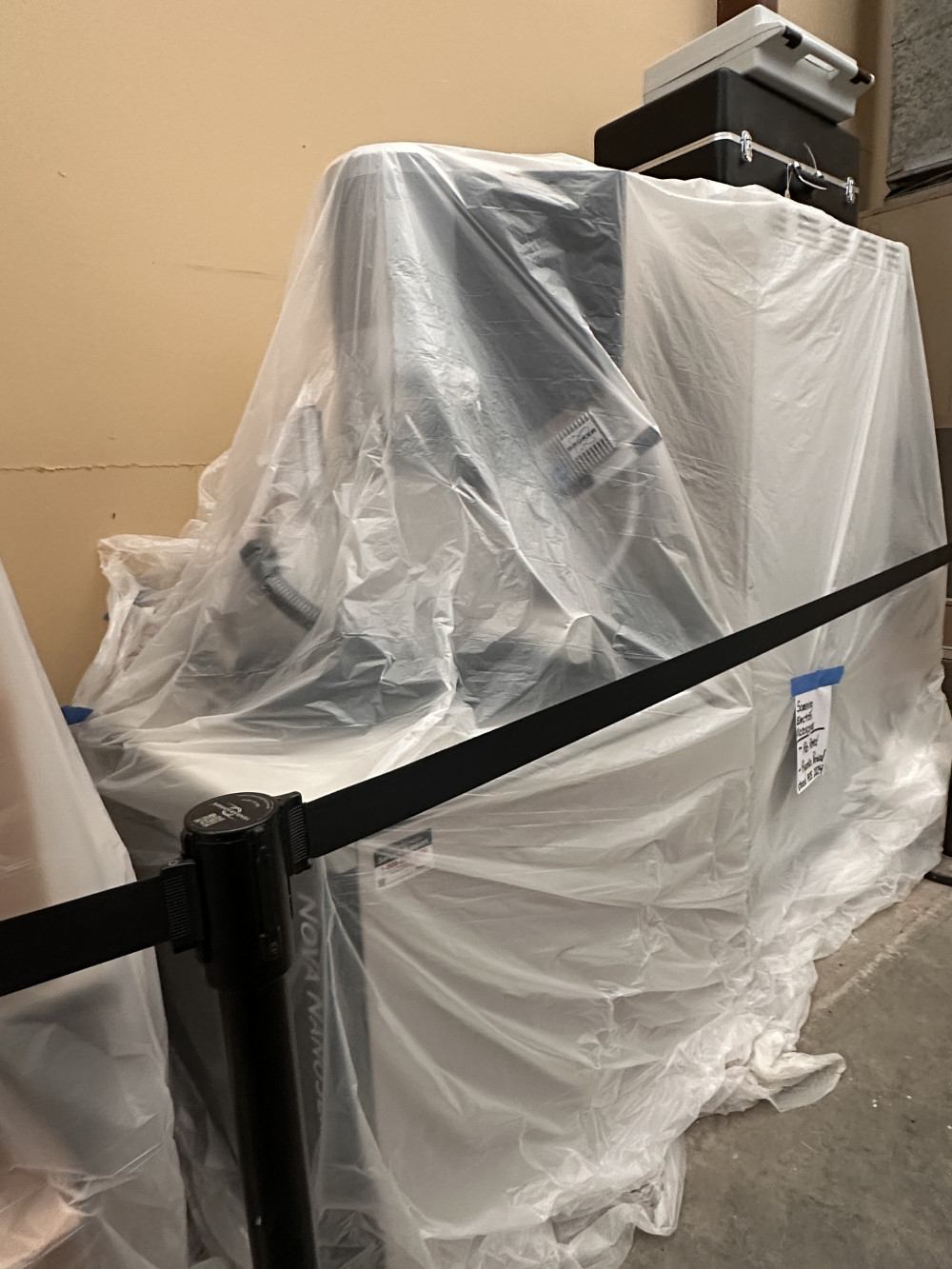

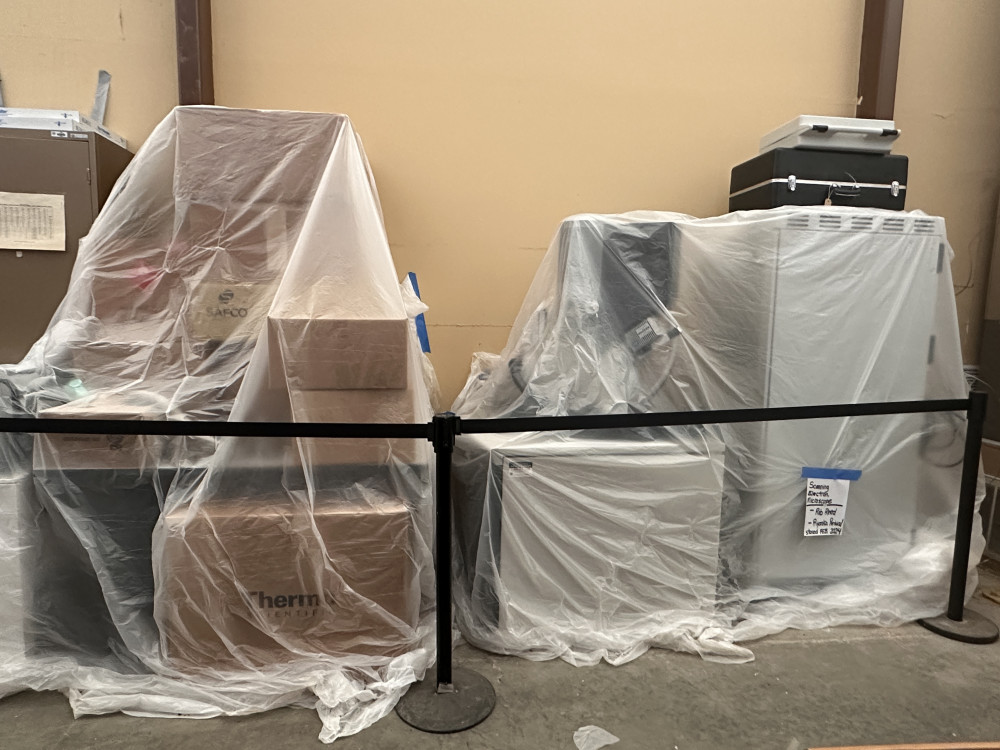

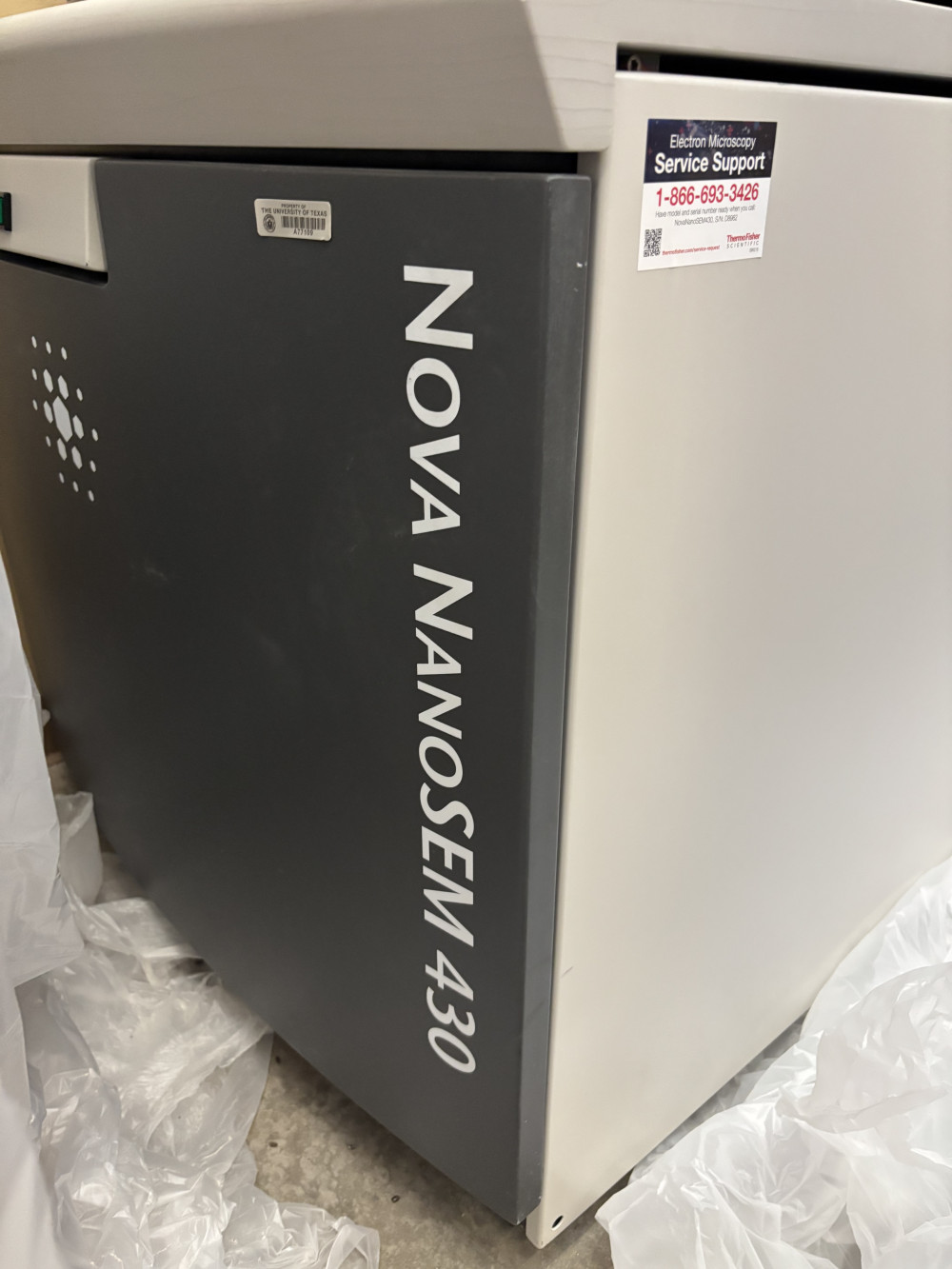

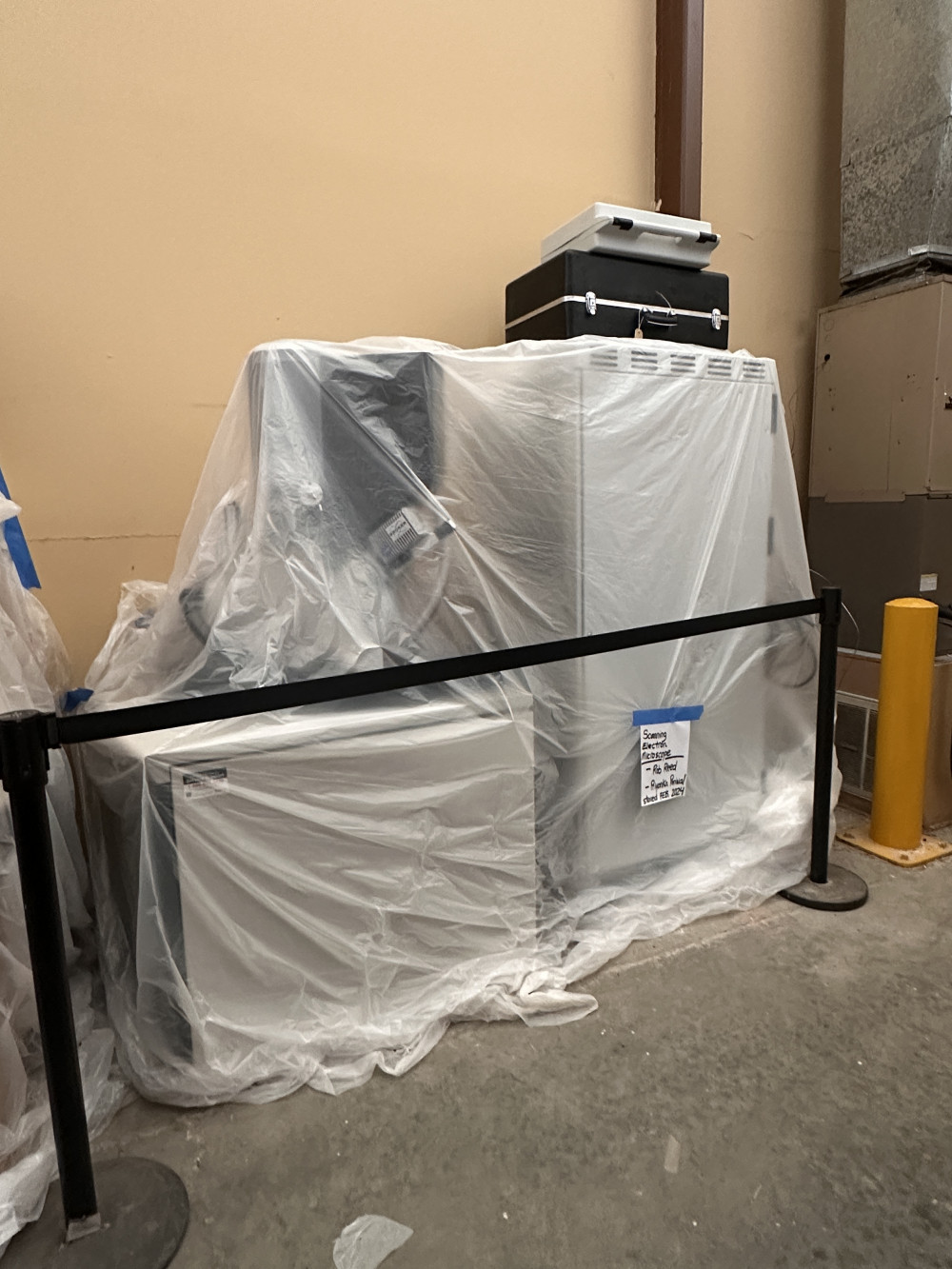

FEI Nova Nano SEM430 - Scanning Electron Microscope (#30002) University Of Texas At Austin
$ 5.00 Minimum Starting Bid
— High Bidder
Tuesday, October 21, 1:00 PM CDT Item Closing (11 Days, 9 Hours)
10 % Buyer's Premium
Item Description

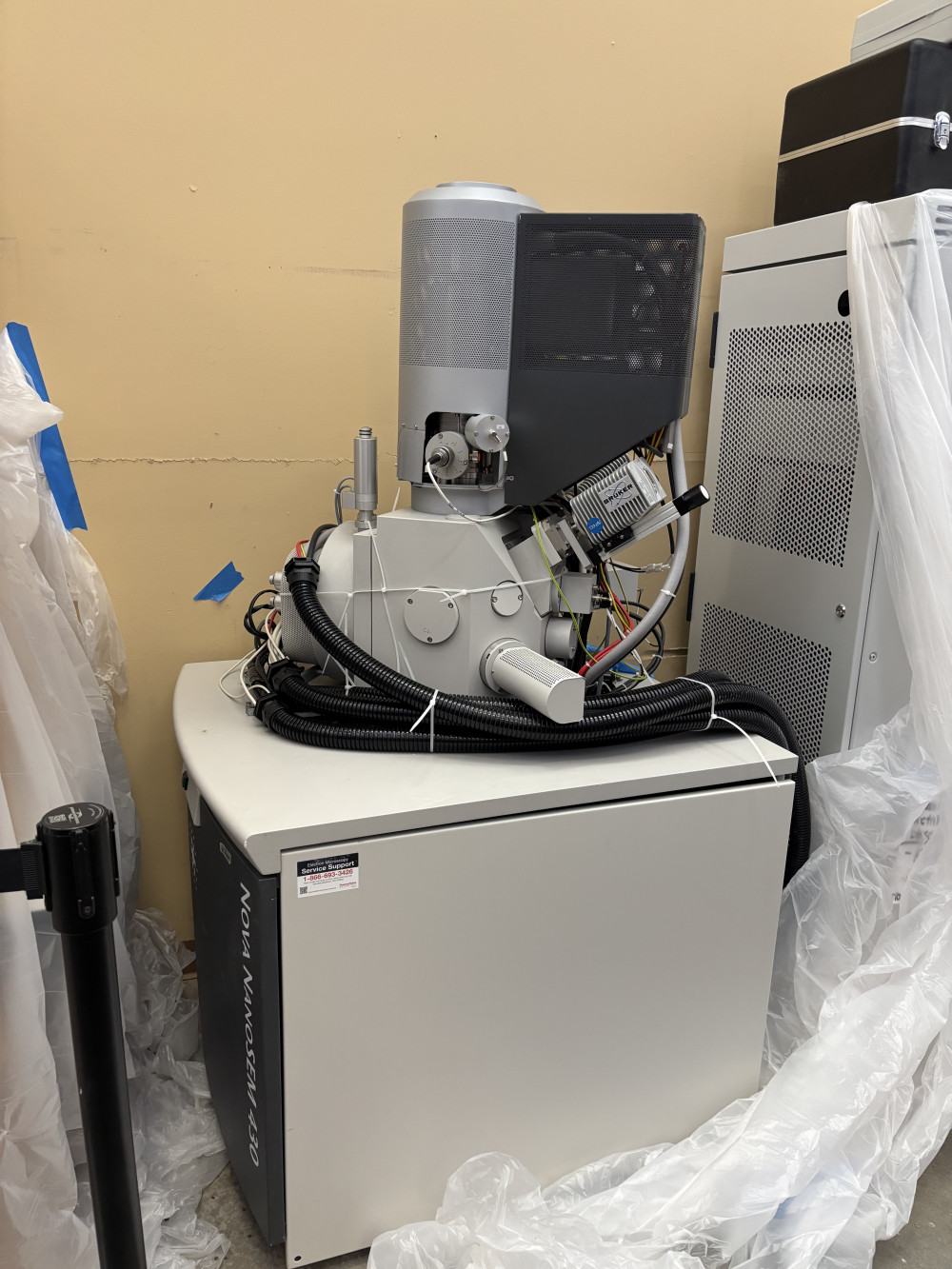

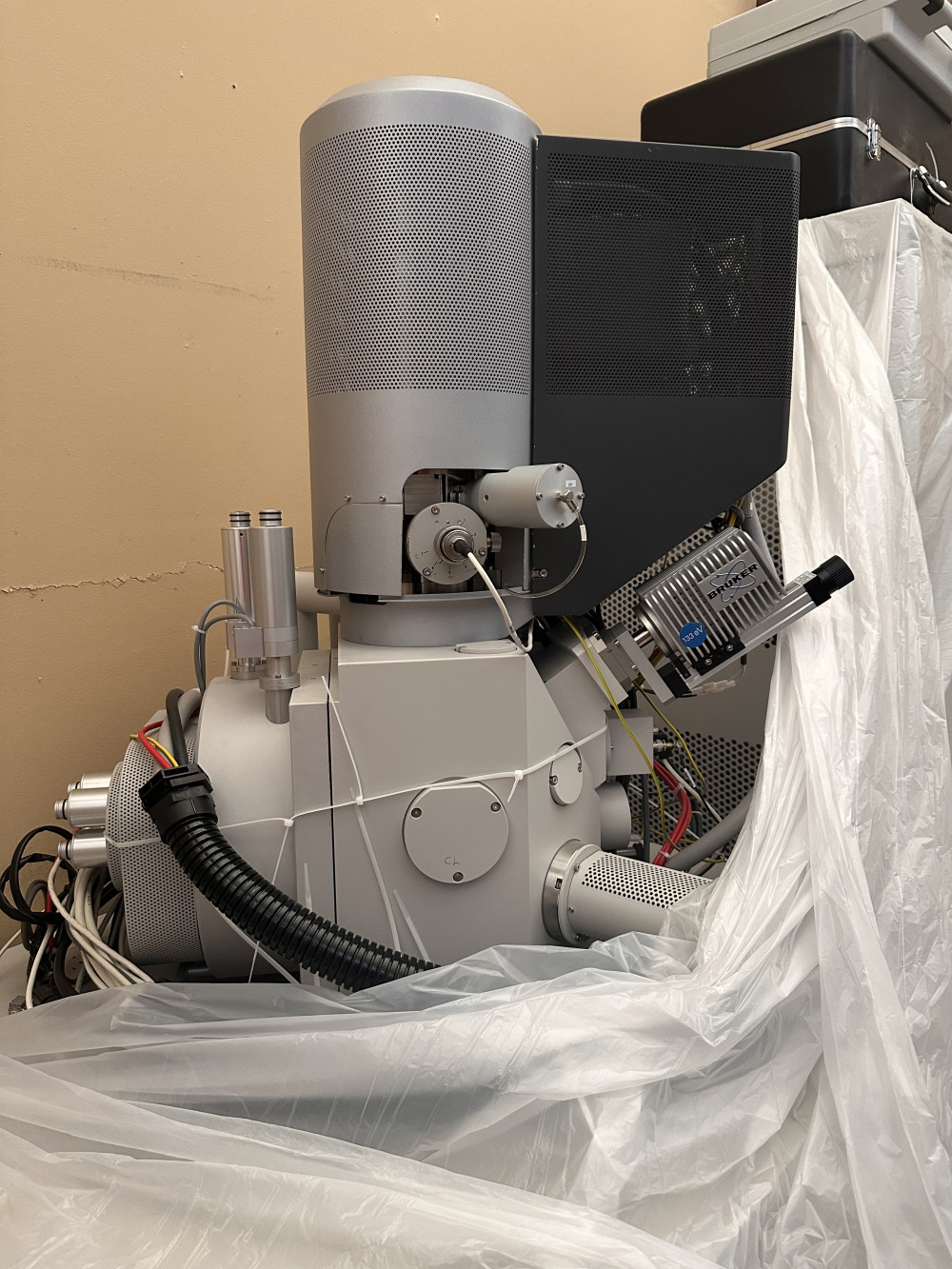

The FEI Nano Nova 430 FEG-SEM installed in 2009 is configured for high-resolution and analytical imaging of various materials. The instrument combines a field emission electron source, oil-free vacuum system, SE, BSE, EDS, magnetic immersion lens, low vacuum detector and chromatic CL. Through-the-lens “immersion mode” imaging allows resolution upto 3-4 nm under optimal conditions. The system is equipped with large chamber with a 5-axes cartesian stage that can accommodate large samples. The low vacuum detector and helix detector enable to acquire images on uncoated rock samples. The Gatan chroma CL provides colored CL images to understand diagenesis in the rock samples.
Specifications:
• Spatial resolution: 3-4 nm under optimal conditions
• Accelerating Voltages from 0.5 kV - 30 kV
• Everhart Thornley Detector (for Secondary electrons)
• Solid-state BSED for high vacuum
• In Lens SE (TLD SE) and BSE (TLD BSE) detectors
• Gatan Chroma CL Detector for wavelength 400-800 nm

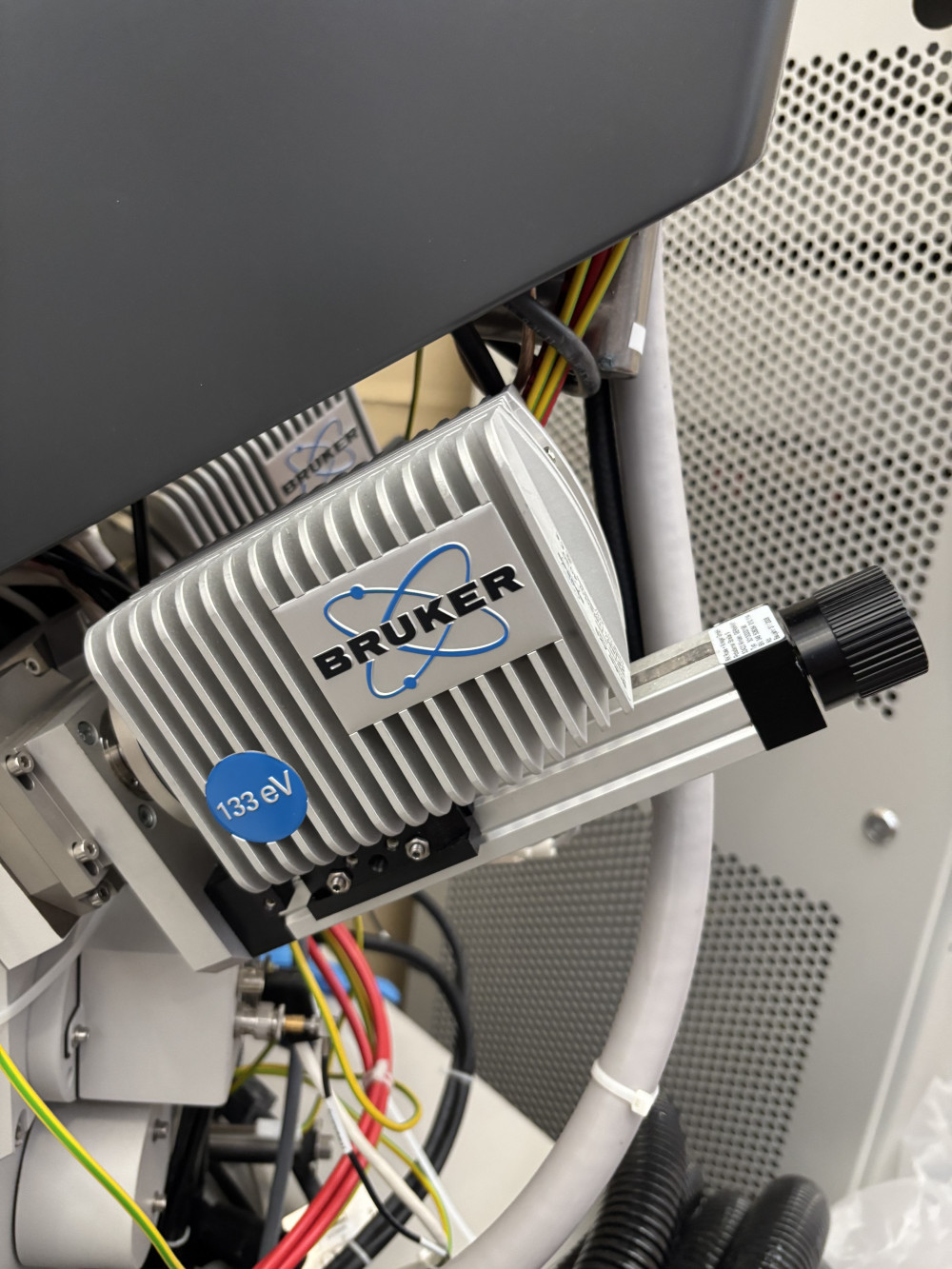

• EDS X-ray mapping (dual Bruker 30 mm2 detectors)
• Low Vacuum Capability (< 0.1 Torr) using UHR low vacuum SED (Helix Detector) and low vacuum SED (LVD)
• Deceleration Mode
• IR-CCD camera for in-chamber viewing
• 5-Axes motorized Stage (X-Y-Z-Tilt-Rotation)
• Working distance 5 mm -12 mm
• Beam current of up to 10 nA in High-Resolution Mode and up to 22 nA in Analytical Mode
*The University of Texas at Austin makes no claim of physical or mechanical condition, and functionality of items available through SWICO Auctions. All items are sold “As is, where is”. It is the sole responsibility of the bidder to physically inspect items before bidding and assume all risk. Photos and descriptions are for preview only. All sales are final and no refunds will be issued. Please refer to the SWICO “Terms of Service” in which you have agreed to.
Viewing Instructions
**Tuesday, Wednesday, and Thursday ONLY, 8:30 AM - 11:30 AM & 1:00 PM - 4:00 PM.
APPOINTMENTS ARE NEEDED.
Pickup Instructions:
7 days from close to pick up your winning item(s) or Item(s) will be forfeited unless approved.
APPOINTMENTS NEEDED.
**winning bidder must provide their own labor and materials to safely remove items from the warehouse. Staff will not be available to assist buyers**
LOCATIONS: UT Surplus Property, J.J. Pickle Research Campus, Austin TX
